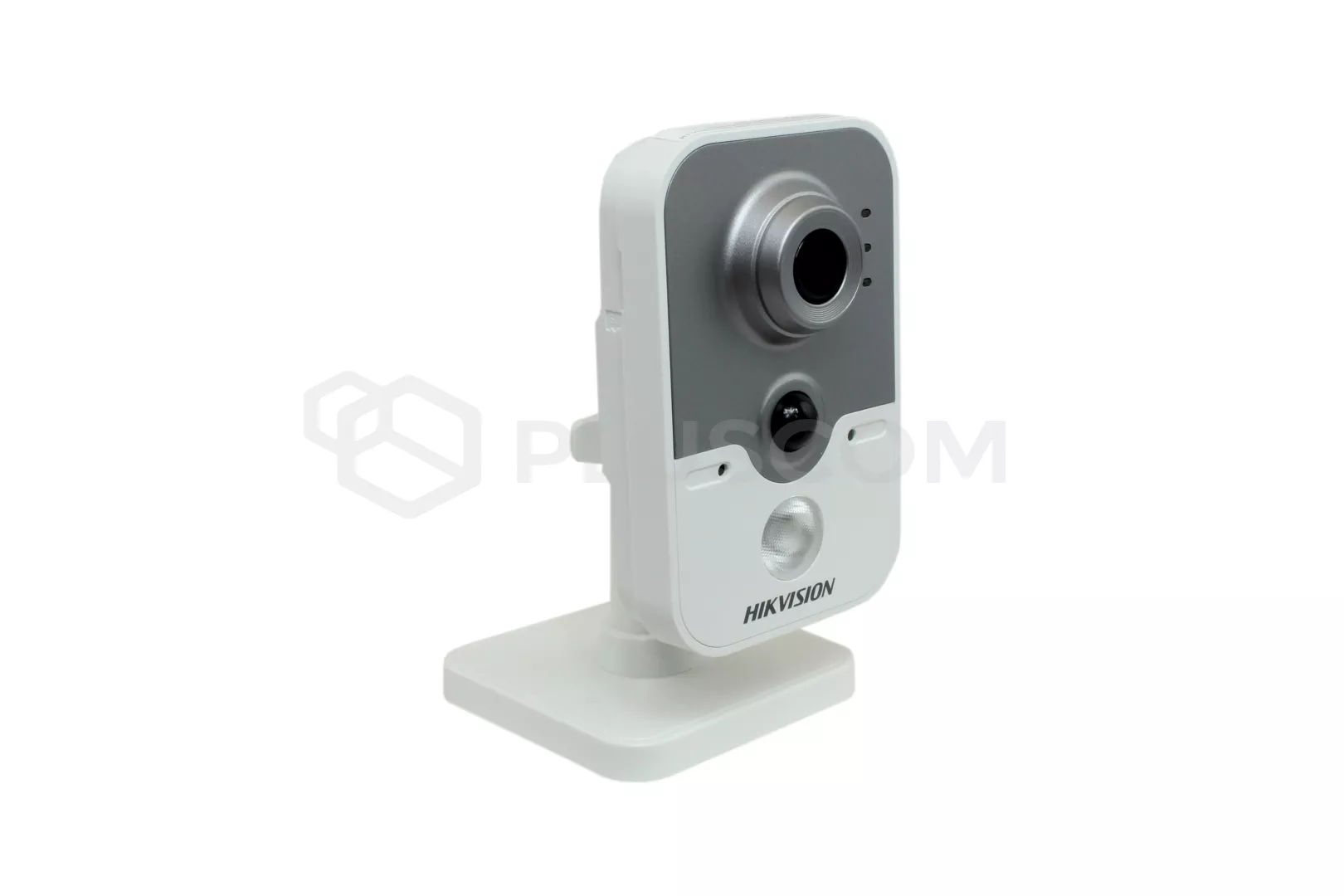

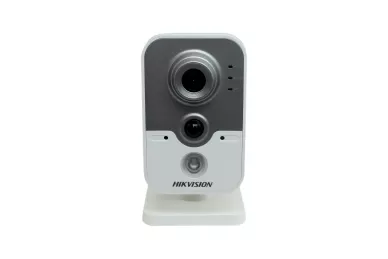

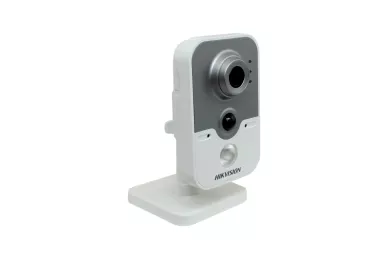

Hikvision DS-2CD2432F-IW (2,8mm) Cube IP Camera

Out of stock. Archived Product.
IP Camera Hikvision DS-2CD2432F-IW belongs to a group HiWatch that was designed specifically for small and medium-sized enterprises.

Products from the group HiWatch characterized by:
  • ease of use
  • ease of maintenance
  • affordable, high-quality
  • the possibility of a flexible upgrade
KEY FEATURES
  • 2048x1536 resolution (3Mpx)
  • 2,8mm fixed lens /F2.0
  • IR emitter 10m + mechanical IR cut filter Day / Night
  • built-in microphone and speaker
  • Integrated PIR (range up to 10m, detection angle 80°)
  • built-in slot microSD card support up to 64GB
  • Features 3D DNR, D-WDR, BLC
  • Alarm in / out
  • Built-in WIFI 802.11 b/g/n

PHYSICAL SPECIFICATIONS
IP Camera DS-2CD2422F-I is designed for indoor applications. It has compact dimensions. Ideal for monitoring of offices, shops, can supervise children playing.

COMPRESSION
High-end CMOS sensor generates 3-megapixel image. There we have two independent streams and two compression methods H.264 / MJPEG. For each stream, we can fine-tune the bandwidth in the range of 32Kbps - 16Mbps. The camera can also send individual frames in JPEG format directly to an FTP server or an e-mail in the form of notification.

OPTICS AND INFRARED
The lens has a fixed focal length of 2.8mm /F2.0 and a viewing angle of 86° horizontally. The lens is equipped with a mechanical IR cut filter, day / night function. Lighting at night is carried out by IR LED with a range of up to 10m.

POWER SUPPLY
It can be done by 12V DC or PoE compatible with 802.3af standard. This reduces the wiring problem, and makes the installation more flexible.

PERIPHERALS AND SOFTWARE
The camera works perfectly with DVRs HIKVISION, through compliance with ONVIF and PSIA cooperation is possible with devices based on the IP protocol provides other free software producentów.Producent iVMS-4200 and iVMS-4500 that becomes the central "brain" Hikvision remote management products. In addition to the basic functions of capturing and storing video content it offers professional camera management and analysis of the material significantly increasing safety functions performing by the system.
Download
Datasheet 0.1 MB
User Manual 3.95 MB
