| Image Sensor |
1/2.7″ progressive scan CMOS, 2 MP |
| Lens |
2.8mm |
| Max. Resolution |
2688 x 1520 |
| Shutter time: |
1/3s to 1/100 000s |
| view angle |
H103° V55° D123° |
| Min. Illumination: |
Color: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux IR |
| Video Compresion |
Main stream: H.265/H.264 |
| Main stream: |
50Hz: 20fps (2592 × 1944) 25fps (2688 × 1520, 2304 × 1296, 1920 ×
1080, 1280 × 720) 60Hz: 20fps (2944 × 1656) 30fps (2688 × 1520, 2304 ×
1296, 1920 × 1080, 1280 × 720 |
| Sub Stream: |
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480,
640 × 360, 320 × 240) |
| Third Stream: |
50Hz: 25fps (1280 × 720, 640 × 480, 640 × 360, 360 × 240) 60Hz: 30fps
(1280 × 720, 640 × 480, 640 × 360, 360 × 240) |
| Video bit rate: |
32 Kbps - 8 Mbps |
| Range IR |
40m |
| Interface |
Ethernet Interface - 1 RJ45 10M/100M self-adaptive Ethernet port |
| On-board Storage |
Built-in micro SD, up to 256 GB |
| Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP,
UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS |
| Functions: |
Day/Night, 120 dB WRD, BLC, HLC, 3D DNR, Motion detection, video
tampering alarm, exception, scene change detection, |
| Moution detection |
yes |
| Tampering alarm |
yes |
| Power suply |
12 V DC 6W |
| Power suply PoE |
PoE(802.3af, 36 V to 57 V) 7W |
| Operating Conditions |
-30..60 °C |
| Ingress Protection |
IP67 |

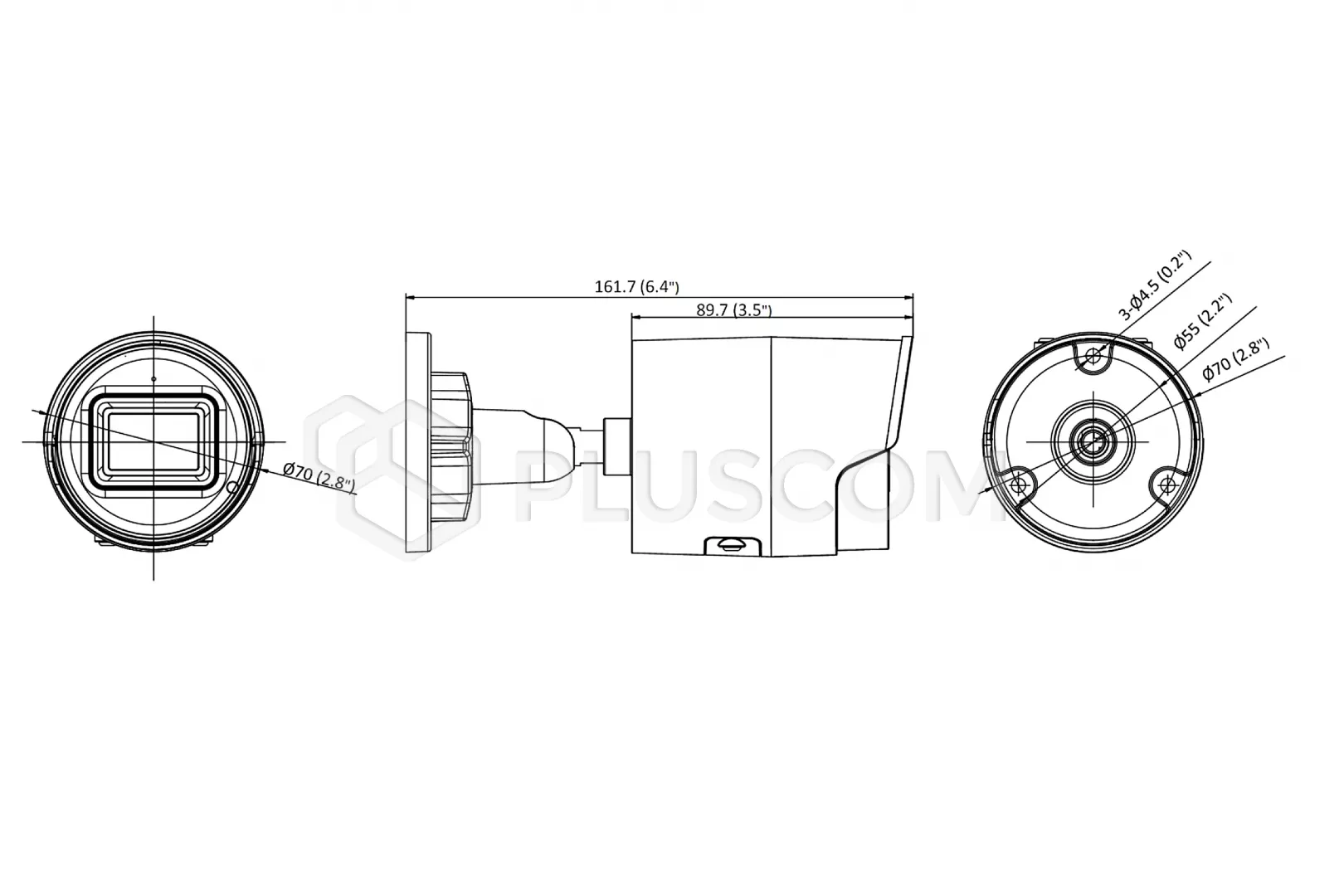

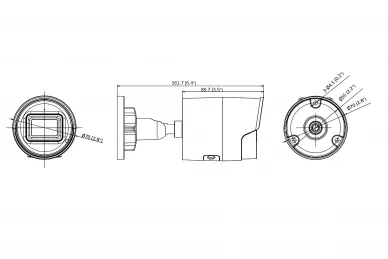

| Dimensions |
70 x 161.7mm |
| Weight |
0.48kg |
