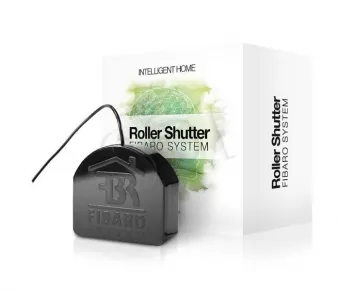

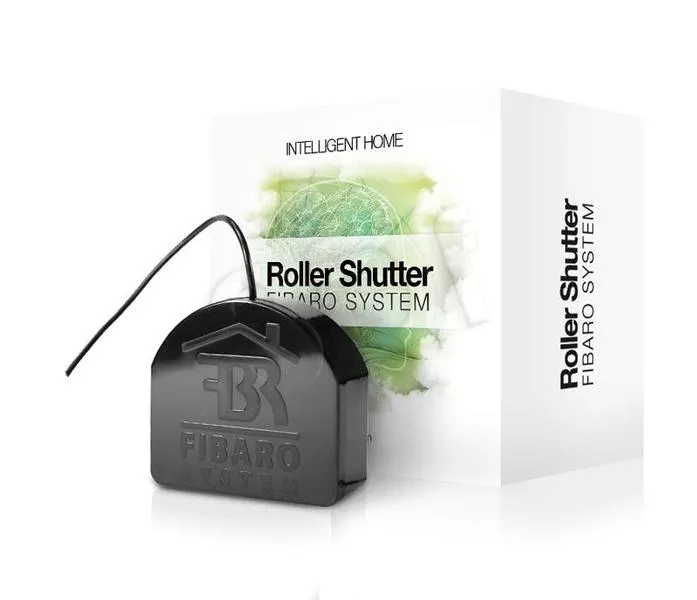

Fibaro roller shutter

Out of stock. Archived Product.

Radio controlled module, designed to work with electric motors in blinds, rollers, canopies and such. Fibaro Blind/Roller Shutter can steer connected device either through radio waves or through the wall switch, connected directly to it. Equipped with unique feature of monitoring current Roller/Blind position.


Fibaro roller shutter

Fibaro roller shutter



Product Highlights:
• Controlled by Fibaro System devices or any Z-Wave controller.
• Microprocessor control
• Executive elements: relays.
• The device may be operated by momentary switch and toggle switch push-buttons and by push-buttons dedicated for roller

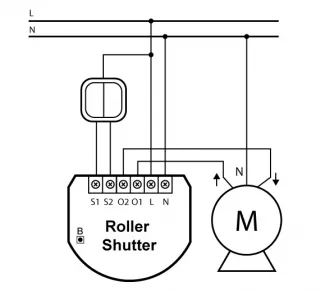

Fibaro roller shutter connection diagram

Fibaro roller shutter connection diagram


NOTES FOR THE DIAGRAM:
L - terminal for live lead
N - terminal for neutral lead
S1 - terminal for key no. 1 (has the option of entering the device in learning mode)
S2 - terminal for key No. 2
O1 - output terminal no. 1 for shutter motor
O2 - output terminal no. 2 for shutter motor
B - service button (used to add or remove a device from the system)

Fibaro product code: FGR-221

Download
Manual 1.18 MB
Datasheet 0.99 MB
