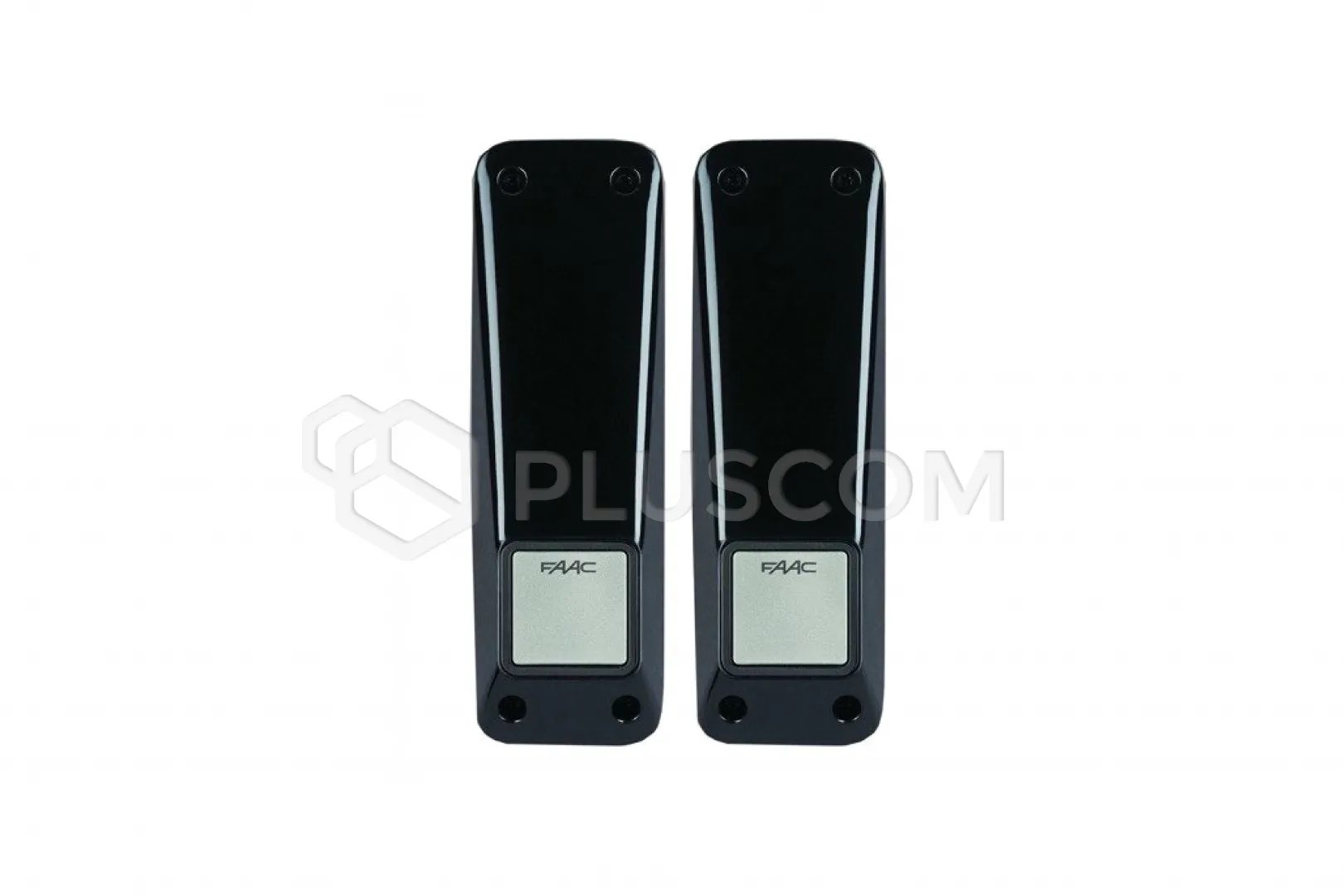

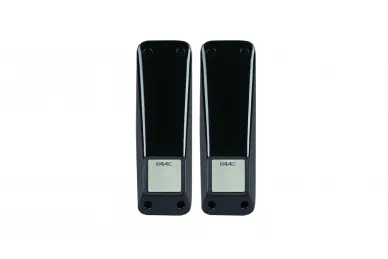

Faac 785104 XP 20W D Wireless photocells with adjustable viewing angle
Wireless photocells with adjustable viewing angle. System with traditional
12/24 V receiver power supply and traditional or battery transmitter power
supply. It eliminates the need to run a cable to the transmitter (battery).
It has selectable channels allowing the installation of up to 4 pairs of
photocells and protection against interference emitted by external light
sources (e.g. vehicle headlights).
Type D device (EN 12453): The new XP 20 D adjustable
photocells consist of a transmitter and a receiver operating on the basis of a
modulated infrared band with a range of up to 20 m.
The refraction of the beam of rays changes the receiver's operating mode.
Precise and reliable adjustment: The photocell is placed on a
support skid equipped with top-class lenses designed to optimize the efficiency
of the beam of rays incident at different angles. The support skid is locked in
the selected position using a quick-mount lock (if necessary, it can be removed
with a screwdriver).
Simple and versatile installation: The new photocells, which
can be mounted on a wall or on a bracket, offer the possibility of mechanical
adjustment of the horizontal viewing angle by 180° (from - 90° to + 90°) and
are equipped with a vertical, optical self-adjustment function, especially
useful when the monitored area is not completely flat.
Perfect in all architectural conditions: Extremely compact
dimensions: 41x130x42 mm. Possibility of inserting the cable into both the rear
and bottom part of the housing (16 mm) and mounting on a bracket.
Technical data:
- RX power supply: 12-24 V AC/DC
- TX power supply: 12-24 V AC/DC or battery (CR2 3V - not included)
- Nominal range: 20 m
- Installation type: surface or column mounting
- Dimensions (W x H x D): 41.5 x 130 x 42.5 mm
- Horizontal adjustment angle: -90° +90°
- Self-adjustment angle: ±7° (20m) ±13.5° (5m)
- Obstacle detection time: 40 ms
- Current consumption: Rx (30mA) + Tx (40mA with battery or 5mA 24V
DC)
- Protection class: IP54
- Operating temperature: from -20°C to +55°C
- Possibility to install up to 4 pairs of photocells in one system
