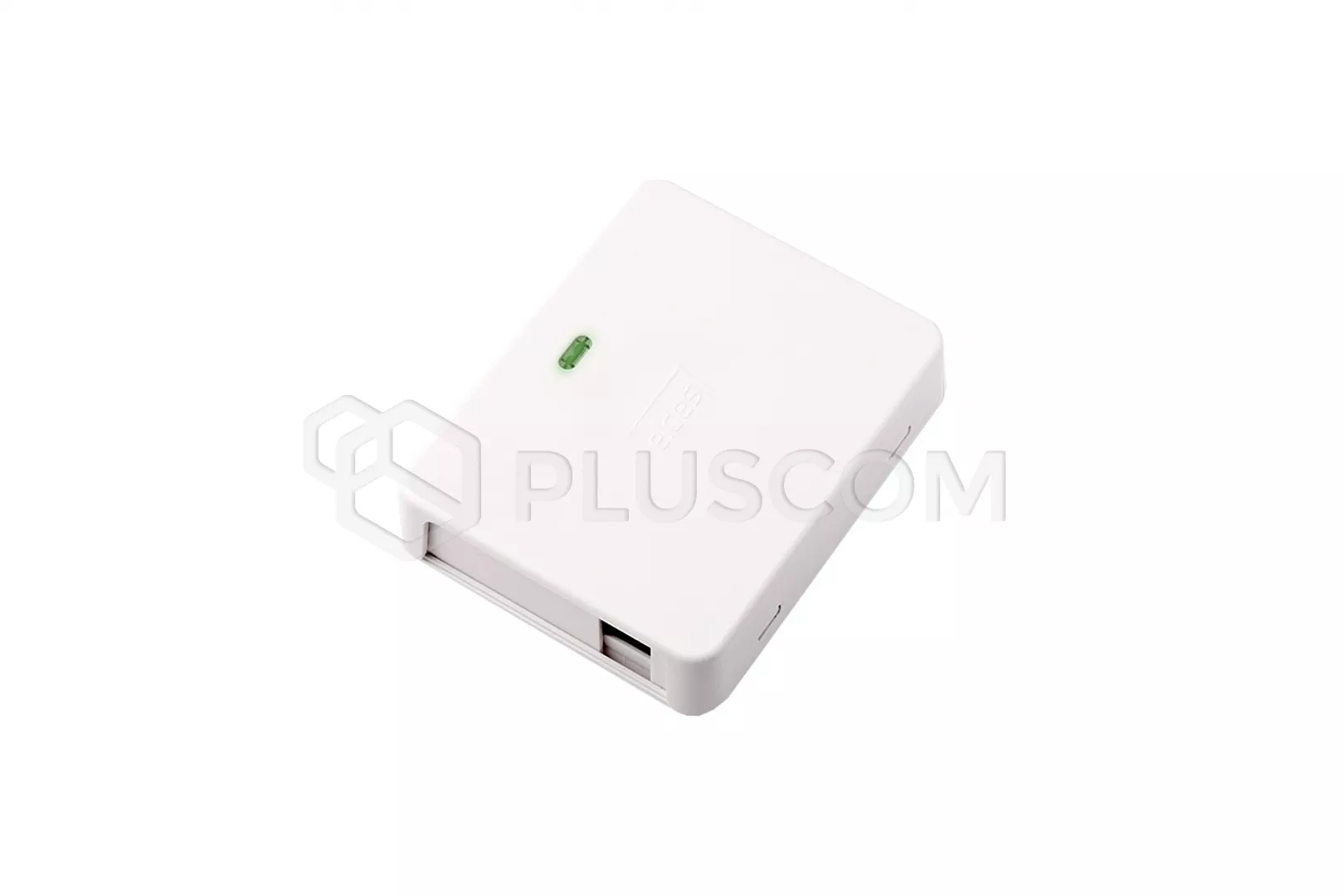

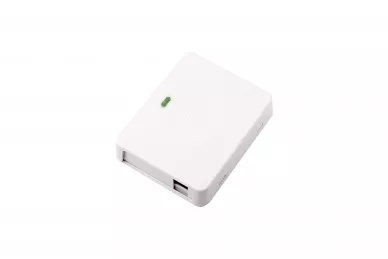

ELDES ESIM320 2G GSM Switch-Gate Controller

ELDES ESIM320 2G GSM Switch-Gate Controller

ESIM320 is designed for simple parking lot control of residential houses or gate control of private houses. ESIM320 allows to create up to 2000 unique users, which is enough for huge object service with just one gate controller! Area’s entry and exit may authorized either by a single phone call or by an individual schedule, and restricted according to a number of phone calls or a specified deadline.

ESIM320 application examples that will make your everyday life easier:

• Parking entrance control
• Gate and garage door control of private areas
• Control of electric appliances: lightings, watering, pumps, electric curtains, etc
• Remote reboot of servers, networks

Different and convenient ways to control

• Calls (control by a regular phone call or using a voice assistant (i.e.Google Assistant or Siri))
• Mobile App (Eldes Smartgate Widget for Android users and Eldes Smart Gate App for iOS users)
• SMS (only for admins)
• WEB platform (only for admins)

Convenient remote administration
ESIM320 can have up to 5 admins at the same time. Remote configuration of the gate controller using the WEB platform and regular self-test ensure extremely easy maintenance. ESIM320 event log allows you to save and check a list of events in chronological order (up to 1000 entries total).

SPECIFICATION

• Power supply: 10 ÷ 24 V AC / DC, 200 mA max.
• Standby current consumption: 50 mA
• GSM band: 850/900/1800/1900 MHz (ESIM120 2G)
• Output current capacity: 24V AC / 0.5 A, 24V DC / 1A
• Working temperature: -20 ° C ÷ + 55 ° C
• Dimensions: 87 x 107 x 29 mm
