Danfoss Living Connect Z 014G0013 - Z-wave radiator thermostat

Living Connect Z - Electronic radiator thermostat

Out of stock. Archived Product.

Danfoss 013G0013 Living connect Z is an electronic radiator thermostat, intended for use with water based room radiators. It can be controlled by a Z -Wave certified controller, which supports the appropriate command classes. Radiator has open Z-Wave protocol, compatible with Fibaro system.

Thanks advanced solutions energy saving thermostat works on 2 alkaline AA batteries for up to 2 years.

The thermostat has three buttons for adjusting the temperature and navigate the menus.
Grey LCD display has a backlight that improves readability.

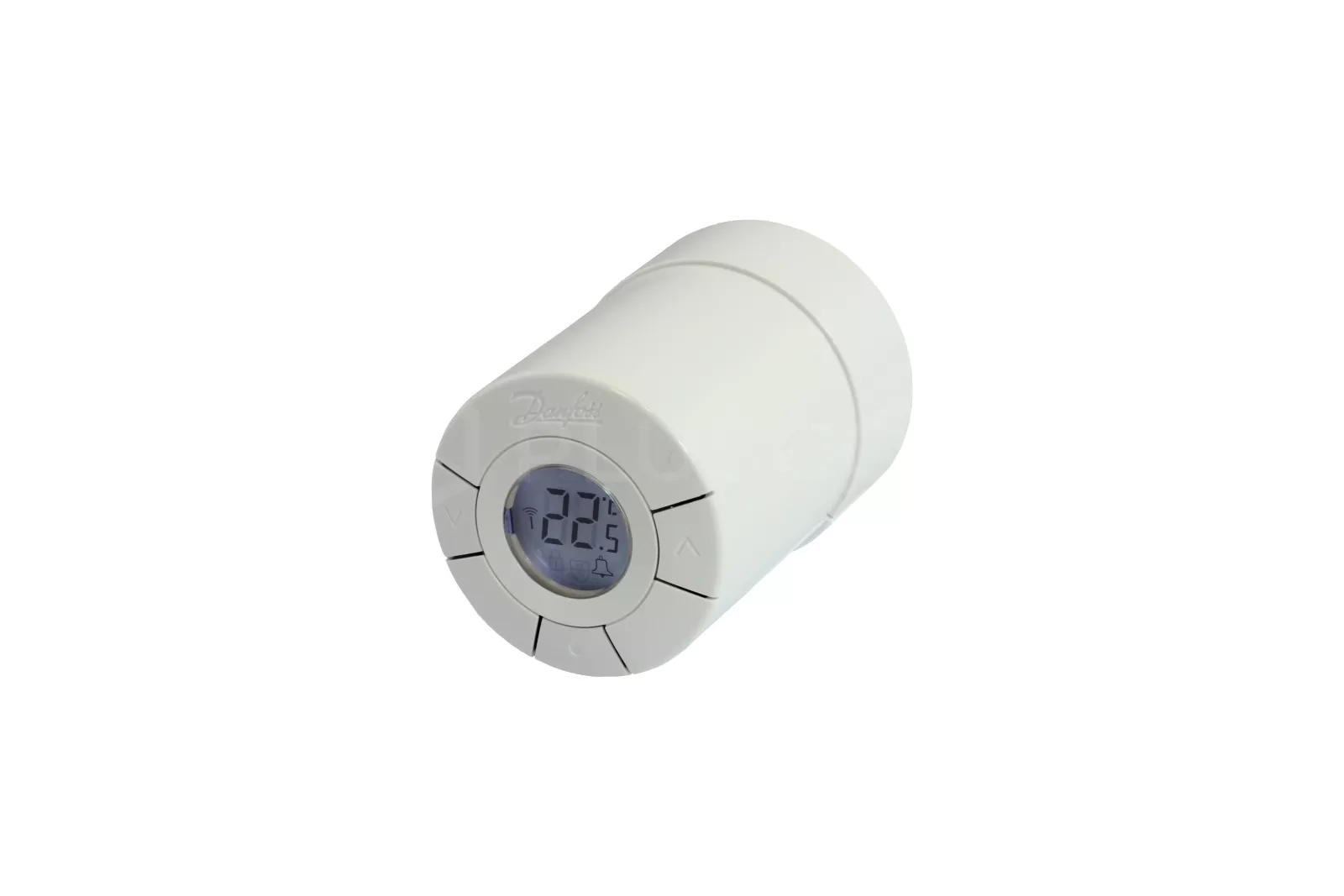

Living Connect Z - Electronic radiator thermostat

KIT CONTENTS AND INSTALLATION

Package contenst:

An electronic radiator thermostat
Adapters for mounting on valves: Danfoss RA or M30x1,5 (K)
Two AA alkaline batteries (do not use rechargeable Ni-MH)
2mm Allen key

After installing two alkaline batteries (included in the kit), the thermostat switches to assembly.
Using the appropriate adapter, install the thermostat on the valve.
Add the device to the Z-Wave network
We make the connection test

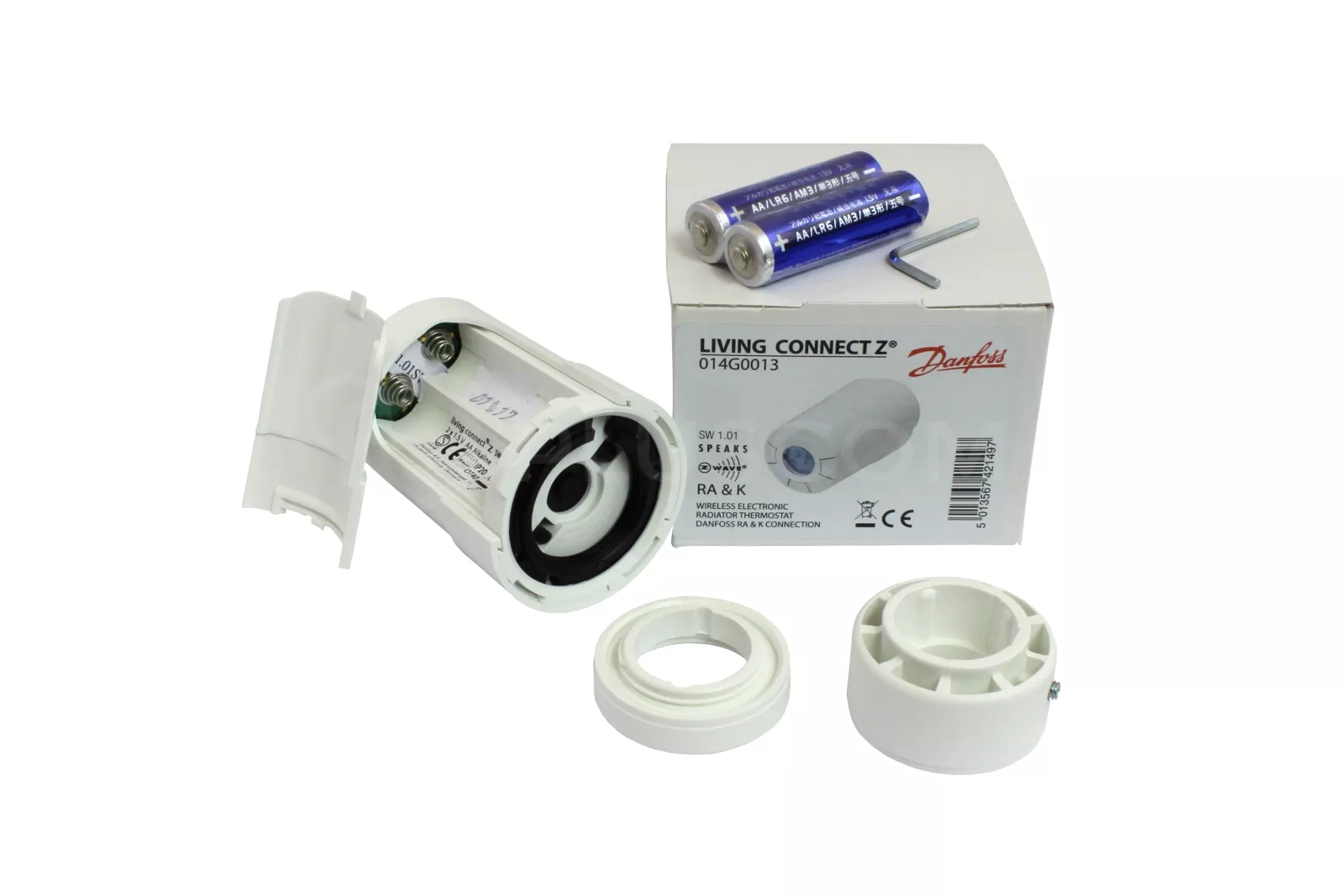

Package contents

Temperature Control rooms takes place via Z-Wave controller. It can be changed at any time directly on the thermostat using the buttons. When you change the temperature the thermostat sends a message to the controller that synchronizes the other thermostats in the same room.
The adjustment range is from 4°C to 28°C.

EAN code: 5013567421497

Specification

Actuator:	electro-mechanical
Software classification:	A
Control:	PID
Transmission frequency:	868,42MHz
Transmission range:	30m
Supply voltage:	1,50V
Power consumption:	3W
Battery life:	2 lata
Ambient temperature:	40°C
Max. water temperature:	90°
Temperature setting range:	4, 28°
Measurement interval:	1min
Spindle movement:	linear up to 4,5mm, max 2 mm on valve (1mm/s)
Noise level:	<30dBA
Safety classification:	Type 1
Weight:	177g
IP class:	20
