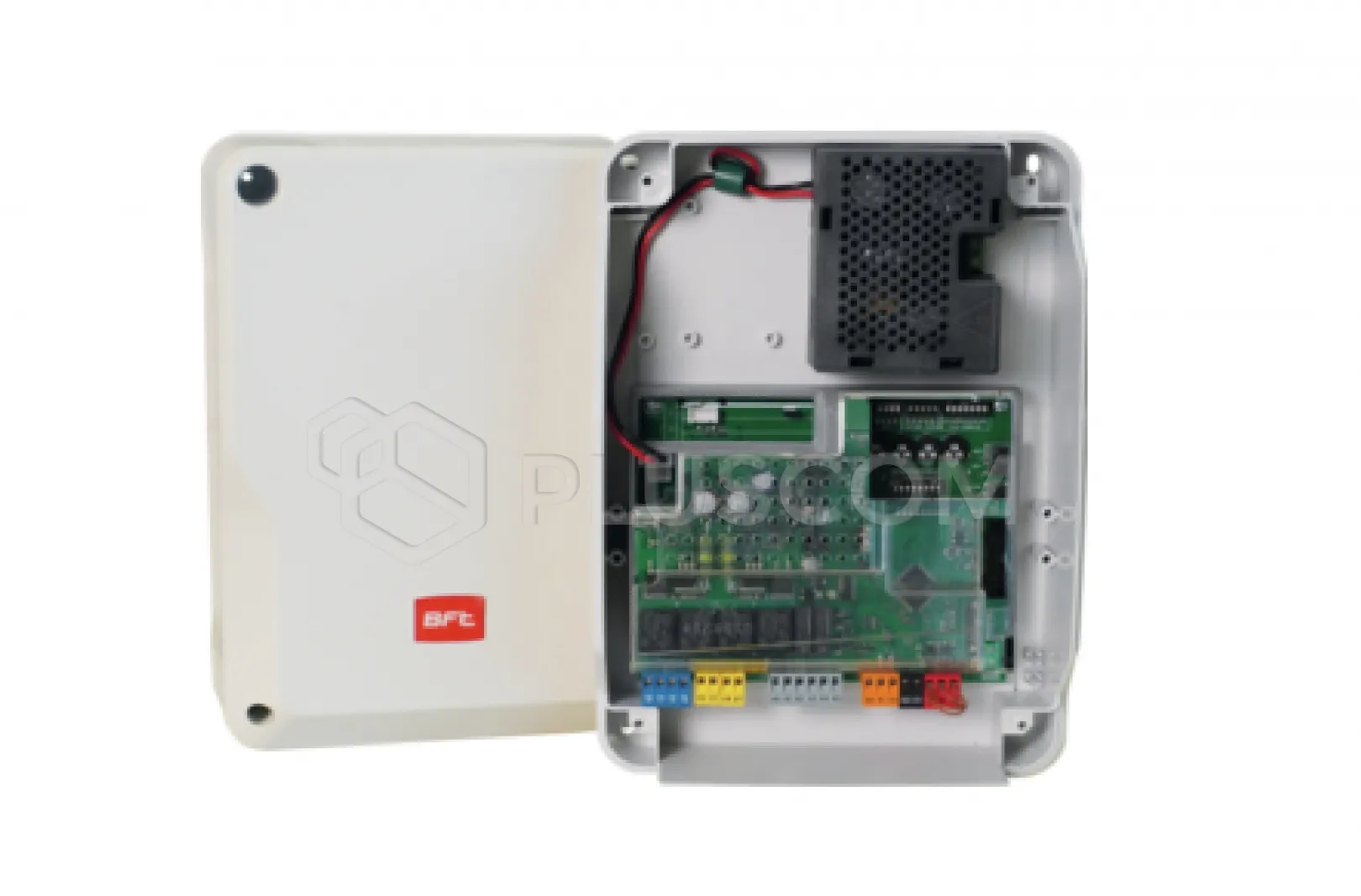

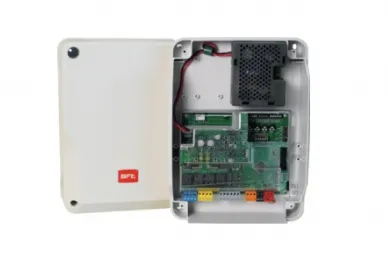

BFT 2614325 ZARA BT A80 control unit

BFT 2614325 ZARA BT A80 Control Unit

Control unit with DIP switches and potentiometers for one or two 24V swing gate drives. Application: control unit for one or two 24V swing gate drives Card power supply: 230 V single-phase.

Drive power supply: 24V DC 180W max each drive.
Main functions: automatic re-closing, quick closing, partial opening, deadman function.

Compatibility: LIBRA C MA, LIBRA, LIBRA R, LIBRA MA R.

Main features: removable terminal block with new color coding, simplified programming of DIP switches and built-in receiver, anti-crushing system with D-Track technology, slowdown during opening and closing and electronic learning, pedestrian control only with remote control, electronic lock management.

FEATURES:

• Modular: additional modules can offer more installation options to meet the requirements of a wider range of customers. The new smart board can, if necessary, provide more electrical power to operate larger engines or engines operating in demanding conditions
• Connectivity: thanks to the U-LINK connector, now also available on the T and D board, you can program the device using the dedicated app, and also do it remotely using the Wi-Fi/GSM gateway
• Portability: the memory capacity for remote controls has been increased from 64 to 128 positions, but if necessary you can choose a 2048-position module to manage installations with a large number of saved remote controls. The memory can be removed and inserted into the new main board without losing any remote controls or the saved list of parameters and logic
• Spaciousness: the electronics housing is completely new. There is more space for maintenance, and the wall mounting system has been revised and simplified
