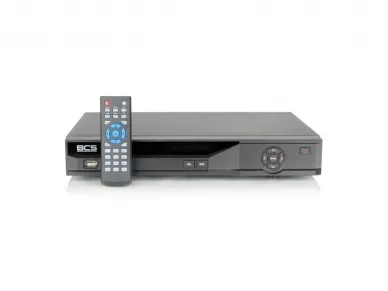

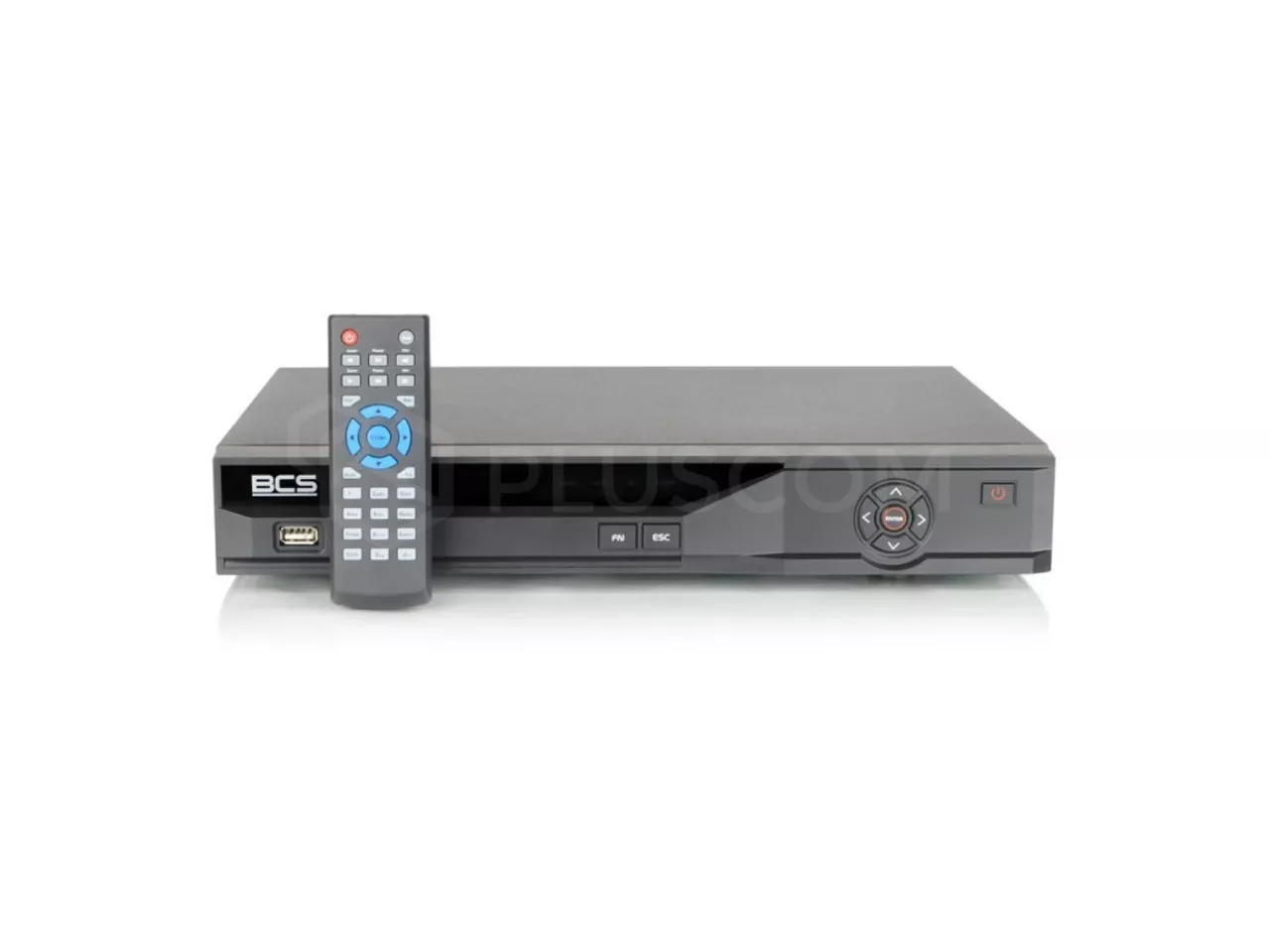

BCS-DVR0801QE-II Analog recorder

Out of stock. Archived Product.

Recorders this series can operate in two modes:
1 - 8 record video from analog cameras at D1 resolution 25fps/s per channel
2 - record video with 6 analog cameras at D1 resolution 25fps/s per channel, and 2 IP cameras 720P or 1080P 1 IP camera.
Requires the latest version of the software.
  • H.264 compression ensures maximum quality recordings with minimal disk usage
  • live Preview in real time with a resolution of 4 cameras D1
  • record up to 100 frames / s at D1 resolution
  • dual stream encoding, provides flexible operation over the network, phone, PDA, iPhone, etc.
  • pentaplex function: live video, record, playback, backup and remote access
  • support 1 SATA hard drive, up to 4 TB, 2 USB 2.0 ports
  • simultaneous 4-channel synchronous playback
  • intelligent motion detection: covering the camera, signal loss, motion detection
  • easy backup: USB memory, network
  • support 3D positioning of PTZ BCS
  • triggering alarms: the message on the screen, buzzer, PTZ reaction, e-mail, FTP
  • full network software: built-in web-server, supports up to 10 users simultaneously, MSS (mobile application)

Specification
Video compression standard: H.264 / Audio G.711
Video output:
1 x HDMI
1 x VGA
1 x TV/BNC(75Ω)
Audio output: 1 kanał, BNC(200-3000mV, 5KΩ)
Resolution:
1024×768
1280 ×1024
1280×720
1920×1080
Recording frame rate: 960H@25kl/s, D1@25kl/s, CIF@25kl/s <br>Kamery IP : 100kl/s@720p lub 50 kl/s@1080p
Back up method: Flash drive / USB HDD / Download via network
Pre-recording: 1 - 30s
Network:
DDNS
DHCP
DNS
FTP
HTTP
IP Filter
IPv4/IPv6
NTP
PPPOE
RTSP
SMTP
TCP/IP
UDP
UPNP
Remote viewing: Tak
Operating system: Android
Data connector:
2 x USB
1 x Ethernet
HDD disc: Brak
Supply voltage: 12V DC - 2A
Pobór mocy: 15W
Weight: 1500g
Dimensions: 325 x 245 x 45mm
Operating temperature: -10 ... +55°C
Download
Datasheet 0.5 MB
