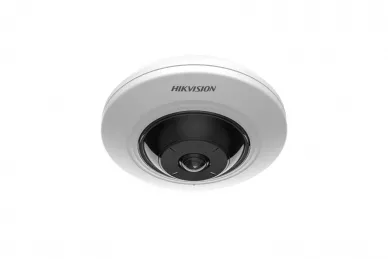

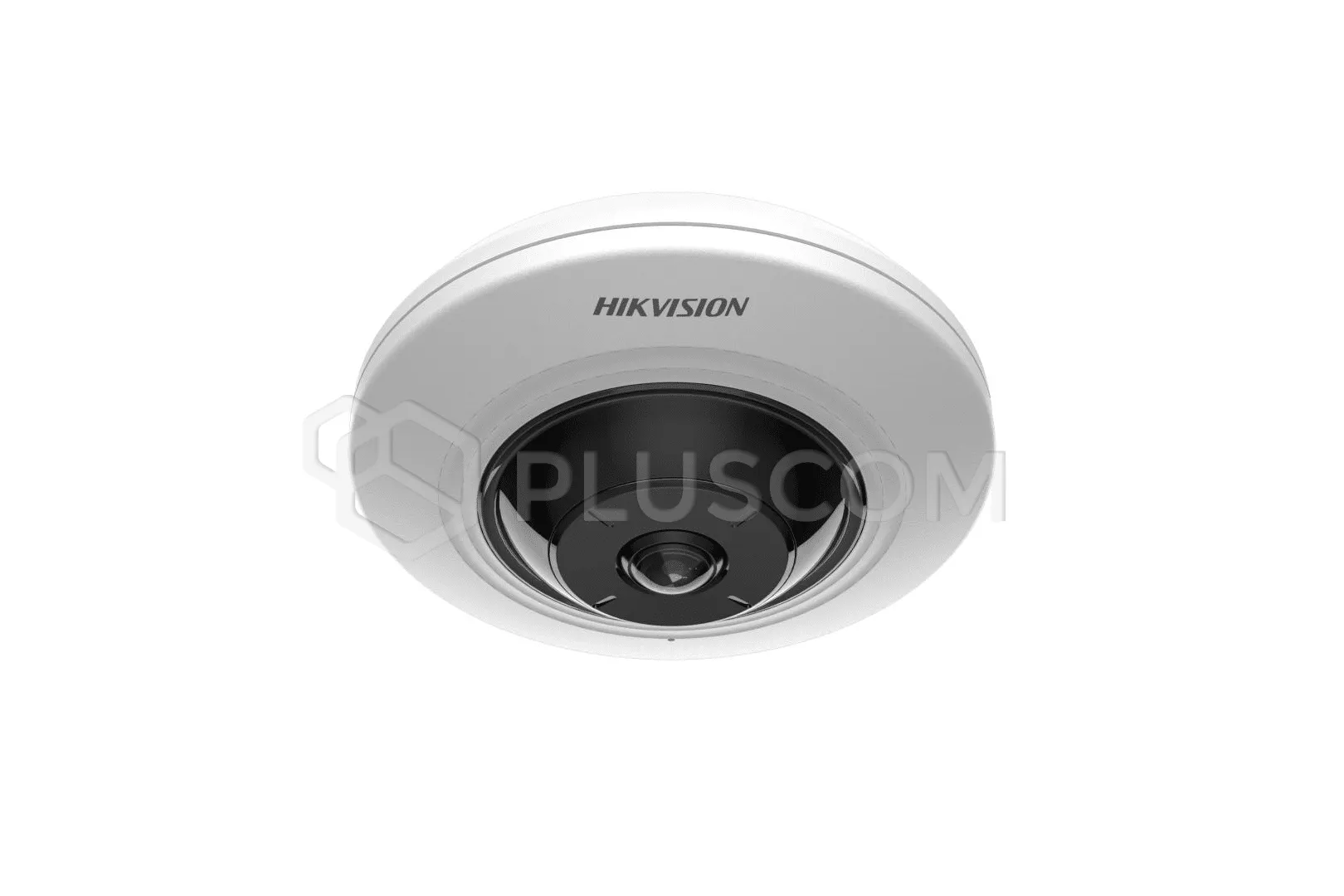

DS-2CD2955G0-ISU(1.05mm) IP Camera

377,79 EUR including 23.00% VAT
Product code: #35046
Manufacturer: Hikvision
  • Image Sensor: 1/2.7" Progressive Scan CMOS
  • Max. Resolution: 2560 × 1920
  • Shutter Time: 1/3 s to 1/100,000 s
  • Min. Illumination: Color: 0.017 Lux @ (F2.25, AGC ON),B/W: 0 Lux with IR
  • Day & Night: IR cut filter
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,51 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

DS-2CD2955G0-ISU(1.05mm) IP Camera


Technical parameters:

Camera

  • Image Sensor: 1/2.7" Progressive Scan CMOS
  • Max. Resolution: 2560 × 1920
  • Shutter Time: 1/3 s to 1/100,000 s
  • Min. Illumination: Color: 0.017 Lux @ (F2.25, AGC ON),B/W: 0 Lux with IR
  • Day & Night: IR cut filter
  • Angle Adjustment: NA

Lens

  • Lens Type: Fixed focal lens, 1.05 mm
  • Focal Length & FOV: 1.05 mm, horizontal FOV: 180°, vertical FOV: 180°, diagonal FOV: 180°
  • Lens Mount: M12
  • Focus: Fixed
  • Min. Focus Distance: NA
  • Iris Type: Fixed
  • Aperture: F2.25
  • Depth of Field: 0.1 m to ∞

DORI

  • DORI: D: 21 m, O: 8 m, R: 4 m, I: 2 m

Illuminator

  • Supplement Light Type: IR
  • Supplement Light Range: Up to 8 m
  • Smart Supplement Light: Yes
  • IR Wavelength: 850 nm

Video

  • Main Stream: 50 Hz: 25 fps（2560 × 1920, 2048 × 1536, 1280 × 960） 60 Hz: 30 fps（2560 × 1920, 2048 × 1536, 1280 × 960）
  • Sub-Stream: 50 Hz: 25 fps (640 × 480) 60 Hz: 30 fps (640 × 480)
  • Video Compression: Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
  • Video Bit Rate: 32 Kbps to 16 Mbps
  • H.264 Type: Baseline Profile,Main Profile,High Profile
  • H.265 Type: Main Profile
  • Region of Interest (ROI): 1 fixed region for main stream

Fisheye Display

  • Mount Type: Support wall/table/ceiling mounting

Audio

  • Audio Type: Mono sound
  • Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
  • Audio Bit Rate: 64 Kbps (G.711 ulaw/G.711 alawm/16 Kbps (G.722.1)/16 Kbps (G.726)/32~160 Kbps (MP2L2)/16~64Kbps (AAC-LC)
  • Audio Sampling Rate: 8 kHz/16 kHz
  • Environment Noise Filtering: Yes

Network

  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
  • Simultaneous Live View: Up to 6 channels
  • API: Open Network Video Interface (Profile S, Profile T, Profile G),ISAPI
  • User/Host: Up to 32 users 3 user levels: administrator, operator, and user
  • Client: iVMS-4200,Hik-Connect,Hik-Central
  • Web Browser: Plug-in required live view: IE 10+, Local service: Chrome 57.0+, Firefox 52.0+
  • Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
  • Network Storage: NAS (NFS, SMB/CIFS)


  • Image Settings: Rotate mode,saturation,brightness,contrast,sharpness,white balance,adjustable by client software or web browser
  • Day/Night Switch: Day,Night,Auto,Schedule
  • Image Enhancement: BLC,3D DNR
  • Wide Dynamic Range (WDR): 120 dB

Transducer

  • PIR Angle: NA
  • PIR Range: NA

Interface

  • Video Output: NA
  • Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
  • Built-in Microphone: -U: Yes
  • Audio: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
  • Alarm: 1 input, 1 output (max. 12 VDC, 30 A)
  • Reset Key: Yes
  • Power Output: 12 VDC, max. 100 mA
  • Indicator: NA
  • Fiber Optical: NA

Event

  • Basic Event: Motion detection, video tampering alarm, exception
  • Smart Event: Line crossing detection, intrusion detection
  • Linkage: Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,trigger alarm output

General

  • Power: 12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7.5 W
  • Material: ADC12
  • Dimension: Ø119.9 mm × 41.2 mm (Ø4.7" × 1.6")
  • Package Dimension: 150 mm × 125 mm × 99 mm (5.9" × 4.9" × 3.9")
  • Weight: Approx. 320 g (0.7 lb.)
  • With Package Weight: Approx. 500 g (1.1 lb.)
  • Language: 13 languages English, Turkish, Polish, Romanian, Czech, Slovak, Traditional Chinese, Thai, Vietnamese, Croatian, Slovenian, Serbian, Ukrainian
  • Storage Conditions: -10 °C to 50 °C (-14 °F to 122 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions: -10 °C to 50 °C (-14 °F to 122 °F). Humidity 95% or less (non-condensing)
  • General Function: Heartbeat,anti-banding,mirror,password protection

Approval

  • EMC: CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
  • Safety: UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1
  • Environment: CE-RoHS: 2011/65/EU

AE专用

  • 红外灯数量: 3
  • IRE数值: NA
  • 浪涌参数: Power (12 VDC): 2KV ; PoE:4KV
  • ABF: NA
  • 防红外反光 （Anti-IR Reflection Bubble）: NA
  • 内插（Connector panel）: NA
  • 防反接保护（DC input with reverse polarity protection）: Yes
  • 宽压: NA
  • 螺丝材质（Screw material）: carbon steel
